EX-1200 / EX-1200-1DR

CNC tube bender EX series

EX-1200 is the best seller model among the other large size benders, often used for production of tubular components for track , bus, airplane and tanker. In addition to its high precision/high-speed, it has exceptional rigidity that provides long life of the machine. Moreover, we have built fulfilling service system that focuses on maintenance after sales and technical supports.

EX-1200

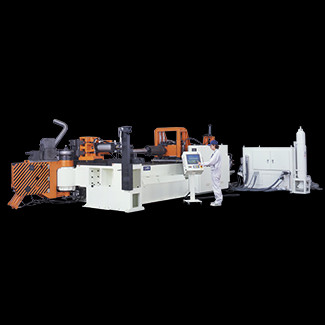

EX-1200-1DR

Specifications

Processing material	Copper/Aluminum tube ｍｍ	φ135xt2.0
Processing material	Steel ｍｍ	φ127xt5.0
Working speed	Bend axis °/sec	45/4.0
	Plane axis °/sec	90/2.0
	Feed axis mm/sec	1,000
	Processing speed sec/ bend	11～20
	Productivity h	300～180
Size	Length mm	STD：8,750 1DR：8,000
	Width mm	STD：2,180 1DR：2,800
	Height mm	STD：2,170 1DR：2,200
Weight kg		STD：14,000 1DR：18,000

// How to Read Model Numbers

EX-○○○-　　

No-sign	Standard general-purpose type
L	Equipped with a tube loader or a robot (laborsaving type)
F	four-axis-control CNC type (bending radius shift axis added)
1DR	For tight radius bending for automobile, airplane, vehicle and construction machinery (with a tube booster and multi-stack)
ECO	All-electric-motor drive type (environment-friendly)
