CNC tube bender EX series

EX-100 / EX-100L / EX-100F

EX-100 is the best seller model which improves flexibility and productivity in small OD bending process for such as automobile piping, air-conditioning tubes and hot-water-supply-equipment piping.

EX-100

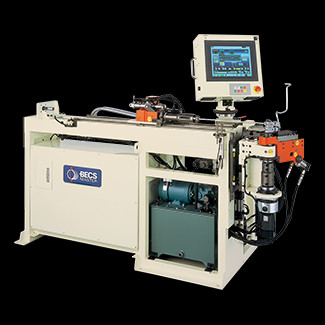

EX-100F

Specifications

Processing material	Copper/Aluminum tube ｍｍ	φ15.9xt1.0
Processing material	Steel ｍｍ	φ10xt1.0
Working speed	Bend axis °/sec	500/0.36
	Plane axis °/sec	600/0.3
	Feed axis mm/sec	1,400
	Processing speed sec/ bend	1.6～4.0
	Productivity h	1,800～1,100
Size	Length mm	STD：1,950 F：1,930
	Width mm	750
	Height mm	STD：1,250 F：1,450
Weight kg		650

// How to Read Model Numbers

EX-○○○-　　

No-sign	Standard general-purpose type
L	Equipped with a tube loader or a robot (laborsaving type)
F	four-axis-control CNC type (bending radius shift axis added)
1DR	For tight radius bending for automobile, airplane, vehicle and construction machinery (with a tube booster and multi-stack)
ECO	All-electric-motor drive type (environment-friendly)
