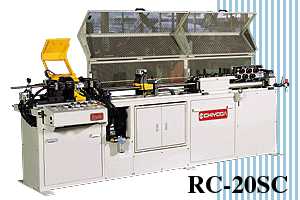

RC-20SC
|
RC-20NC/25NC
|

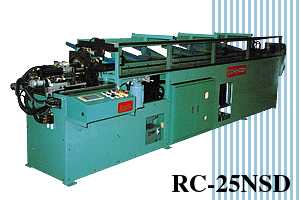

RC-25NCD/NSD
|
|
Processing method
|
Spin Cutter Type (with pull function)
|
|
Work setting method
|
Coil Material quick-over change type/RC-25 straight type
|
|
Material
|
Copper pipe, Aluminum pipe, dual winding pipe, steel pipe
|
|
Available diameter
|
ø6.35~22.22
|
ø6.35~22.22
|
|
Cutting length
|
100mm~9,000mm
(Step-wise feed if the length is 1,000 mm or longer)
|
100mm~10,000mm
(Step-wise feed if the length is 1,000 mm or longer)
|
|
Cutting accuracy
|
±0.2mm/±0.3mm
|
±0.2mm/±0.3mm
|
|
Cutting unit
|
1 piece 1pc
|
|
Cycle time (Reference)
|
100mm:1.5~4.0sec
500mm:2.0~6.0sec
1,000mm:3.0~8.0sec
2,000mm:5.5~11.0sec
|
100mm:within 4.0 sec
500mm:within 6.0 sec
|
100mm:Cutting/3.0~4.0sec
100mm:Deburring/6~10sec
500mm:Cutting/6.0sec
500mmDeburring/7~11sec
|
|
Primary power source
|
AC200V 50/60Hz
|
|
Secondary power source for operation
|
AC200VÅE AC100V/50/60Hz,DC24V
|
|
Control method
|
Hydraulic / pneumatic solenoid valve control by Seguencer
|
Hydraulic / pneumatic solenoid valve control feed by micro-computerized
NC
|
|
Motor
|
Feed motor
|
-
|
0.98kw (AC Servo-motor)
|
|
Cutter Motor
|
0.75kw /unit
|
|
Hydraulic motor
|
1.5kw /unit
|
|
Hydraulic unit
|
Deburring Motor
|
-
|
0.2kw /2 units
|
|
Operation pressure
|
25~35Kg/cm2
|
25~35Kg/cm2
|
|
Discharge
|
20Å`25 l/min
|
|
Tank cap
|
20 liter
|
|
Pneumatic source
|
Pressure
|
4Kg/cm2
|
|
Consumption
|
1000 liter/min
|
300 liter/min
|
|
Weight (main unit)
|
1200kg/1500kg
|
1500kg/1800kg
|
